High quality. Chrome-plated telescopic rod, good rigidity, high hardness, high bending strength, bearings with high wear resistance and durability.
High strength swingarm. The swing arm can withstand a wide range of torsion, has high tensile strength and can be extended and adjusted as desired.
Solid metal. The case is made of aluminum alloy and the case design is well thought out.
High energy. Built-in high performance brush motor, stable performance.
The “Speed” order option is the maximum speed per minute, 1 rotation is 1 rotation and is extended once. Example: 90 rpm is the fastest 90 rpm and the controller can only reduce the speed.
Speed: 45rpm, 90rpm and 120rpm.
There are 2 types of stroke to choose from: 2-8cm, 3-15cm (adjustable within the stroke).
Technical characteristics

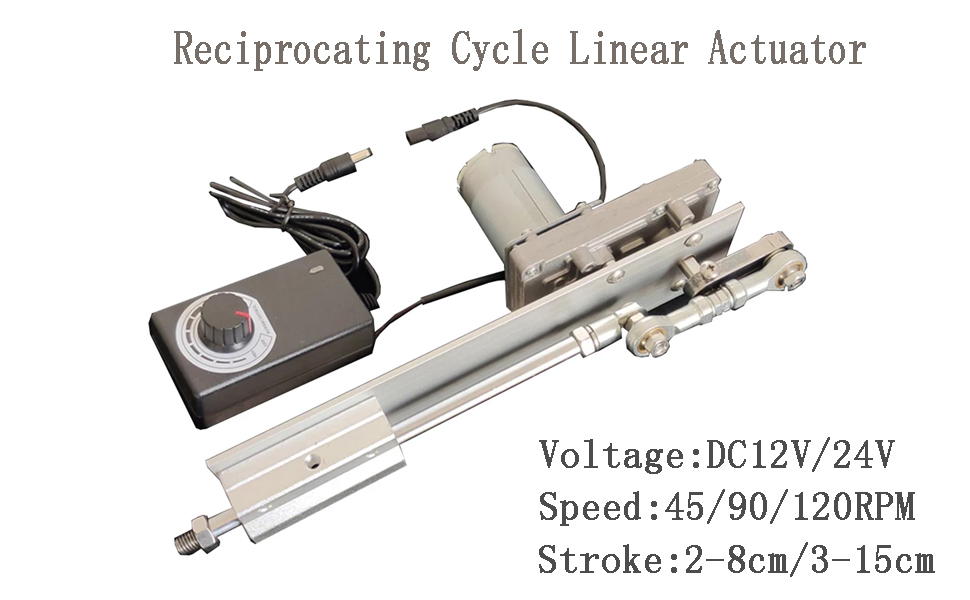

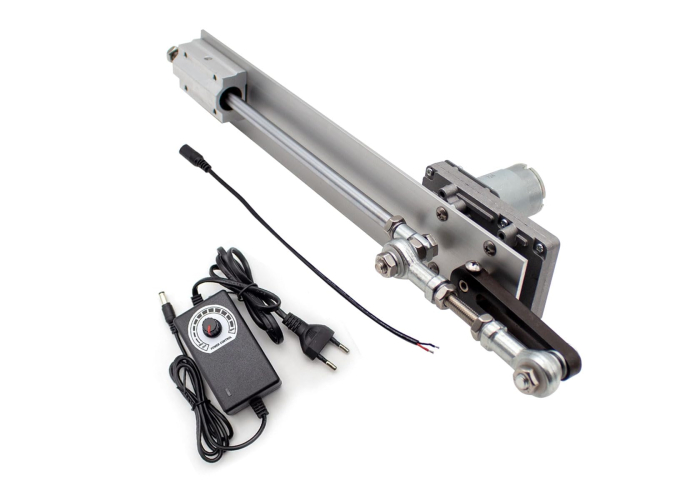

- Product Name: Reciprocating Linear Actuator
- Stroke: 3-15cm
- Input voltage: 100-240VAC
- Operating voltage: DC 12V/24V (optional)
- Maximum speed: 45rpm/90rpm/120rpm (optional)
- Pulling force: 2-25kg (various strokes)
- Fixed frame size: 350x30x60 mm.
- Weight: 1.8kg
No questions about this product, be the first and ask your question.
Toplionace 12V/24V DC Reciprocating Linear Actuator with Speed Controller 3-15cm Stroke 90RPM
- Ean number: 755205957672
- Product Model: Toplionace
